High-Performance Web Guiding Sensors for Every Material Type
BST’s advanced web guiding sensors provide highly accurate, non-contact scanning solutions across diverse materials and industrial conditions. Designed to integrate seamlessly with BST’s web guiding systems, these sensors offer scalable solutions for production control systems, ensuring consistent performance and minimal downtime in Indian manufacturing environments.
Whether you’re working with paper, film, foil, transparent substrates, or printed materials, BST offers the right sensor solution to enhance your guiding system and optimize alignment accuracy.
Types of BST Sensors
Ultrasonic Sensors (US) : Perfect for scanning dusty, fibrous, or transparent materials. These web aligner system sensors use ultrasound to detect web edges without physical contact.
Key Benefits:
- Resistant to dirt and transparency changes
- Stable performance despite material height variations
- Ideal for high-transparency films and light-sensitive substrates
Optical Sensors (IR) : Utilize light for non-contact scanning of web edges, providing accurate alignment even in complex environments.
Highlights:
- Optional air-rinse to protect optics
- Wide scanning range supports web centre-line guiding
- Suitable for thick, opaque, or semi-transparent materials
CLS Pro 600 – Digital Contrast Sensor : A high-precision sensor for detecting print lines, edges, and contrasts using color sensors.
Features:
- Automatic LED lighting adjustment
- Touchscreen display with real-time visual feedback
- Remote operation with intuitive interface
- Excellent for edge guiding systems at high speeds
CLS CAM 100 – Object Recognition Sensor : Camera-based sensor for object and motif-based web guiding systems. Operates at speeds up to 1,200 m/min.
Top Features:
- Full object and motif recognition
- 7-inch multi-touch control panel
- Ideal for high-speed contrast edge control
- Setup saving for faster production changeovers
CCD CAM 100 – High-Resolution Digital Sensor : Best for multi-point scanning, web width measurement, and tool alignment like cutting knife tracking.
Technical Advantages:
- Up to 60,000 pixel resolution
- Flexible camera objectives
- Real-time material switching without recalibration
- Network-ready for production parameter sharing
Why Choose BST Sensors in India?
- Trusted web guiding system manufacturers
- Precise edge guiding system solutions for varied materials
- Supports seamless integration into existing production control systems
- Remote support and service available across India
The Ultrasonic Sensors from BST facilitate the touch-free scanning of the web edge using ultrasonic waves.
Ultrasonic Sensors at a Glance:
- Resistant to dirt and variations in material transparency
- Measurement values not influenced by height fluctuations in the material in the sensor scanning area
- Compensates for disturbances through external sources of noise and other ambient influences
Areas of application:
- Materials with dust- or fibre-like deposits
- High transparency films
- Films with changing transparency
- Light-sensitive materials
The Optical Sensors from BST facilitate the touch-free scanning of the web edge using light.
BST Optical Sensors at a Glance:
- Optical scanning (resistant to foreign influences)
- Measurement values not influenced by height fluctuations in the web in the sensor scanning area
- Optional rinsing air connection protects the optics from contamination by paper dust or abraded particles (IR 2011)
- The large proportional measurement area facilitates the web centre-line guiding, even in the case of relatively large web width variations
- Areas of application: transparent and non-transparent materials, thick materials
Field of Application
- Transparent and non-transparent materials
- Thick materials
Download Brochure Here
BST offers various digital sensors that scan the web touch-free by registering contrasts in light.
The BST CLS Pro 600 sensor stands out through its high precision when scanning print lines, print edges, or web edges with colour sensors.
CLS Pro 600 at a Glance:
• Precise scanning of lines, print edges, or web edges using colour sensors
• Optimal lighting conditions by automatically regulated LED lighting
• Extreme reliability, even at the highest web speeds
• Clear presentation on the colour display
• Minimization of downtime through simple operation and an intuitive user interface
• Positioning help via laser projection
• Realistic depiction of the print line, print edge, or web edge on the colour display
• Removable control panel for ease of operation, even in scanning positions that are difficult to access
• Possibility for remote operation of the basic control functions
• Convenient selection of the print line, print edge, or web edge, because contrast transitions are indicated with colours
Field of Application
- Digital scanning of web edges, printed edges or printed lines
- Web center-line guiding, web width measurement
- Control of tools or other machines (tracing of cutting knives, etc.)
Download Brochure Here

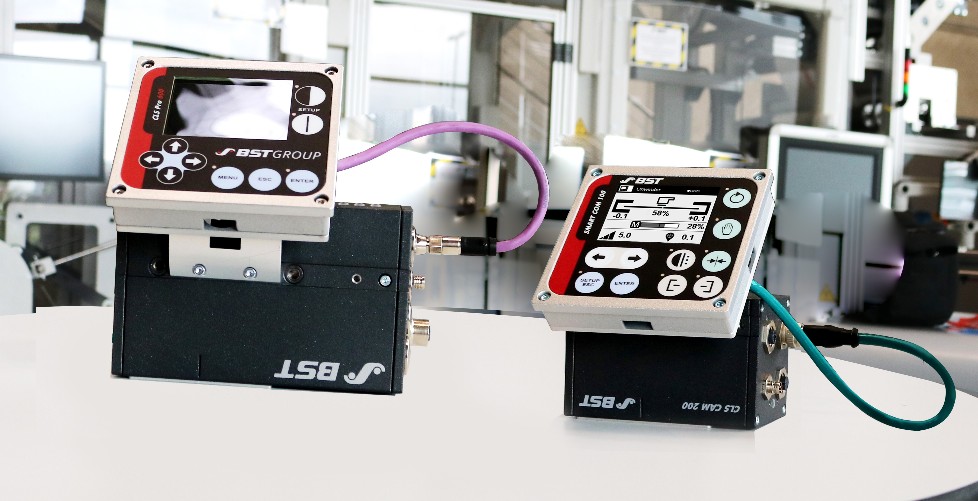

OBJECT RECOGNITION WITH CLS CAM 100 – STATE OF THE ART GUIDING
The all-new camera-based BST sensor CLS CAM 100 allows controlling directly according to objects and motifs on the web. Scanning of print lines and print edges is of course also possible. The intuitive, simple user guidance via the supplied 7-inch multi-touch operating panel is worthy of particular mention.
CLS CAM 100 at a Glance
- Precise scanning of objects and motifs, lines, print edges, or web edges using colour sensors
- Optimal lighting conditions by automatically regulated LED lighting with 500 fps
- Object recognition, even at the highest web speeds up to 1,200 m/min
- no additional trigger / no additional trigger signal required
- Intuitive user guidance on the external 7-inch multi-touch control panel
- additional operation via colour display directly on the sensor head
- Minimization of downtime through simple operation and an intuitive user interface
- Positioning help via laser projection
- comfortable selection of guiding criteria by intuitive swipe gestures
- Areas of application: control of contrast edges, web edges, or printed lines
- Automatic job and setup saving to minimize makeready times
BST offers various digital sensors that scan the web touch-free by registering contrasts in light.
The BST CCD CAM 100 sensor is especially suitable for the digital scanning of print lines, print edges, or web edges, and for the web centre-line guiding and web width measuring. A CCD CAM 100 can recognize up to eight contrast transitions.
CCD CAM 100 at a Glance:
• Resolutions of up to 60,000 pixels through the microprocessor-controlled CCD chip
• Various objectives for adjusting the measurement area of the application
• Camera parameters adaptable to a change of material during operation (no change over time)
• Fast set-up and adjustment through the integrated graphic display
• Simple operation through numerous automatic functions (e.g. suppression of interfering contrasts, contamination compensation, white balance, saving of the set-up values)
• Fast and secure transfer of the production and parameter settings through networking via the BST bus system
Field of Application
- Digital scanning of web edges, print edges, or print lines
- Web center-line and web width measuring
- Control of tools (such as the tracking of cutting blades, etc.)
Videos & Animations
FAQ Section
Q1: What type of materials can BST sensors scan?
A: BST sensors are designed to scan a wide range of materials including paper, foil, transparent films, thick substrates, and printed surfaces.
Q2: Which sensor is best for scanning printed lines or motifs?
A: The CLS CAM 100 is ideal for object and motif recognition, while CLS Pro 600 is excellent for contrast-based edge scanning.
Q3: Are BST sensors compatible with all web guiding systems?
A: Yes, BST sensors are fully compatible with all BST web guiding systems and controllers used in the Indian market.
Q4: Do BST sensors require regular recalibration?
A: No, digital sensors like CCD CAM 100 offer automatic calibration, minimizing setup time and maintenance.
